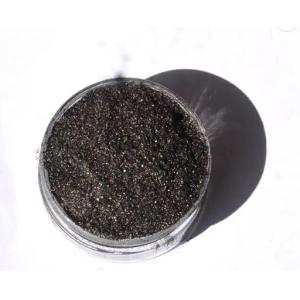

Nature 80 Mesh Flake Graphite Brake Pads Thermal Graphite Powder
Specification:
| Brand No | Volatile (%)>≠ | Ash (%)>≠ | Moisture(%)>≠ | PH Value | Particle Size Screen Oversize | Expansion Multiple |
| 9950300 | 13 | 0.7 | 2.5 | 3-7 | 70 | 300 |
| 9950250 | 13 | 0.7 | 2.5 | 3-7 | 70 | 250 |
| 9950200 | 13 | 0.7 | 2.5 | 3-7 | 70 | 200 |
| 9950150 | 13 | 0.7 | 2.5 | 3-7 | 70 | 150 |
| 9950100 | 13 | 0.7 | 2.5 | 3-7 | 70 | 100 |
Graphite powder China manufacturer High carbon flake graphite for lubrication /recarburize Advantages:
Excellent property of crystalline flake graphite, unusual oxidation resistance, self-lubricity, mouldability andadhesivity, superior electric and thermal conductivity. Micronized graphite is natural crystalline graphite, subjected to milling, grinding, and particle classification; then further concentrate to desired levels.
Hensen’s micronized graphite’s average particle size ranges from 3 to 60 microns, with fixed carbon of 90-99.9%. Using one or combination of different mills, such as jet mill, hammer mill and spherical mill, Hensen Graphite produces and supplies micronized graphite with specific physical properties and optimized to the needs of each application.
Topical Grade
| Grade | D10
(um) | D50
(um) | D90
(um) | Carbon Content
(%) | Bulk Density
(g/l) | Moisture
(%) |
| HSMG35 | 15±5 | 35±5 | 70±10 | 95-99 | 550-600 | <0.5 |
| HSMG25 | 7±3 | 25±5 | 60±10 | 95-99 | 350-450 | <0.5 |
| HSMG20 | 6±3 | 20±5 | 38±8 | 95-99 | 300-400 | <0.5 |
| HSMG10 | 4±1.5 | 10±2 | 25±6 | 95-99 | 200-300 | <0.5 |
| HSMG6BP | 3±1 | 6±1.5 | 22±5 | 95-99 | 100-170 | <0.5 |
| HSMG4 | 2±1 | 4±1 | 11±2 | 95-99 | 130-230 | <0.5 |
| HSMG2 | 1±0.5 | 2±1 | 5±2 | 95-99 | 150-250 | <0.5 |
Usage:
1. as mould release lubricant in the production of catalyst of in chemical fertilizer industry.
2. as basis material of high-temperature or corrosive resistant lubricants.
3. as mould release agent in powder metallurgy or raw material in metal alloy.
4. as packings or catalysts of rubber, plastics and varieties of composite materials.
